Product Feature
- Full touchscreen UI operation mode (VQ-200)
- Supports Qualitative/Quantitative analysis applications and Melt Curve, etc.
- Full plate scanning mode
- Data export formats: Excel, PDF
- Custom report generation supported

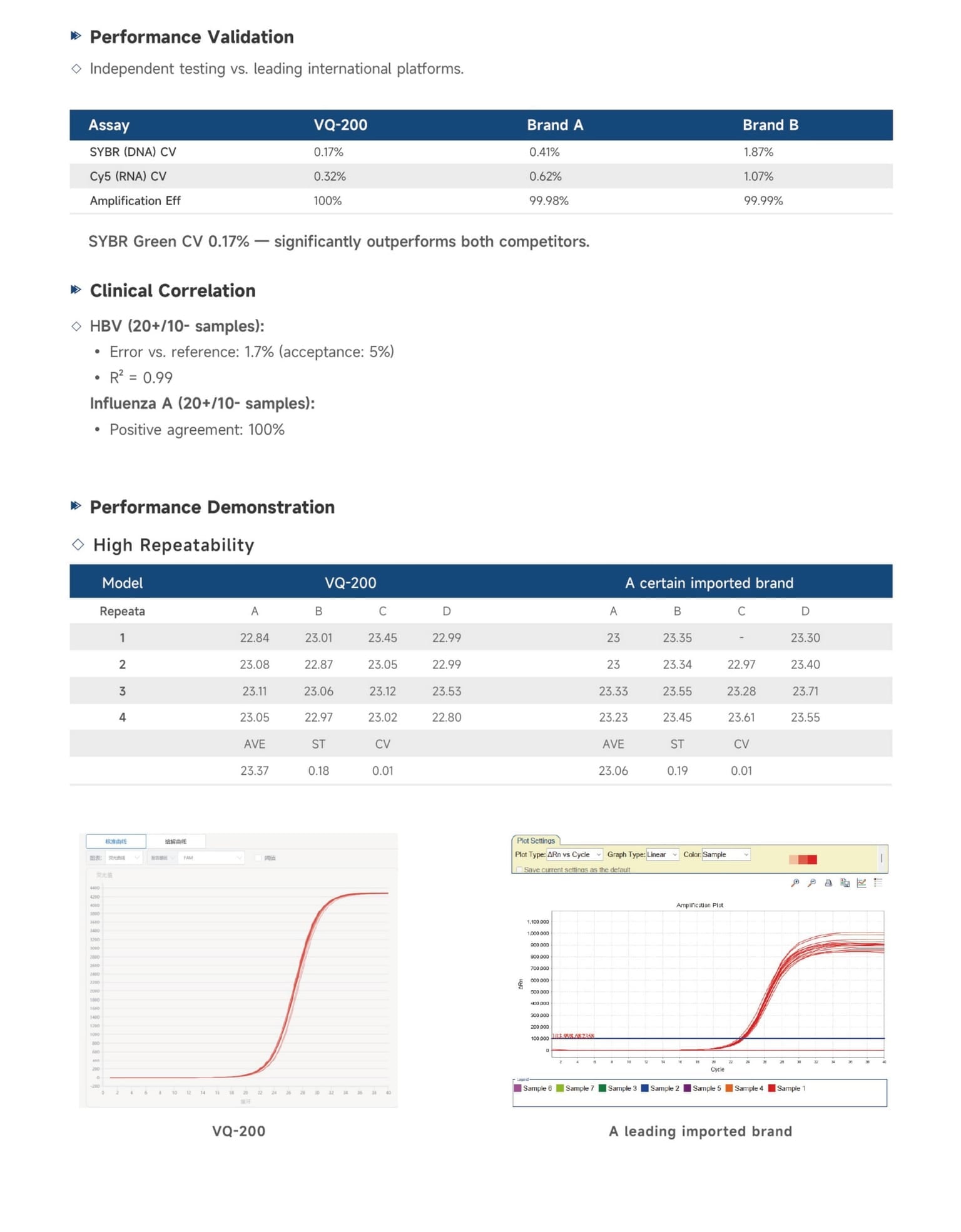

- Excellent repeatability with AVE 23.37, ST 0.18, CV 0.01 (VQ-200)

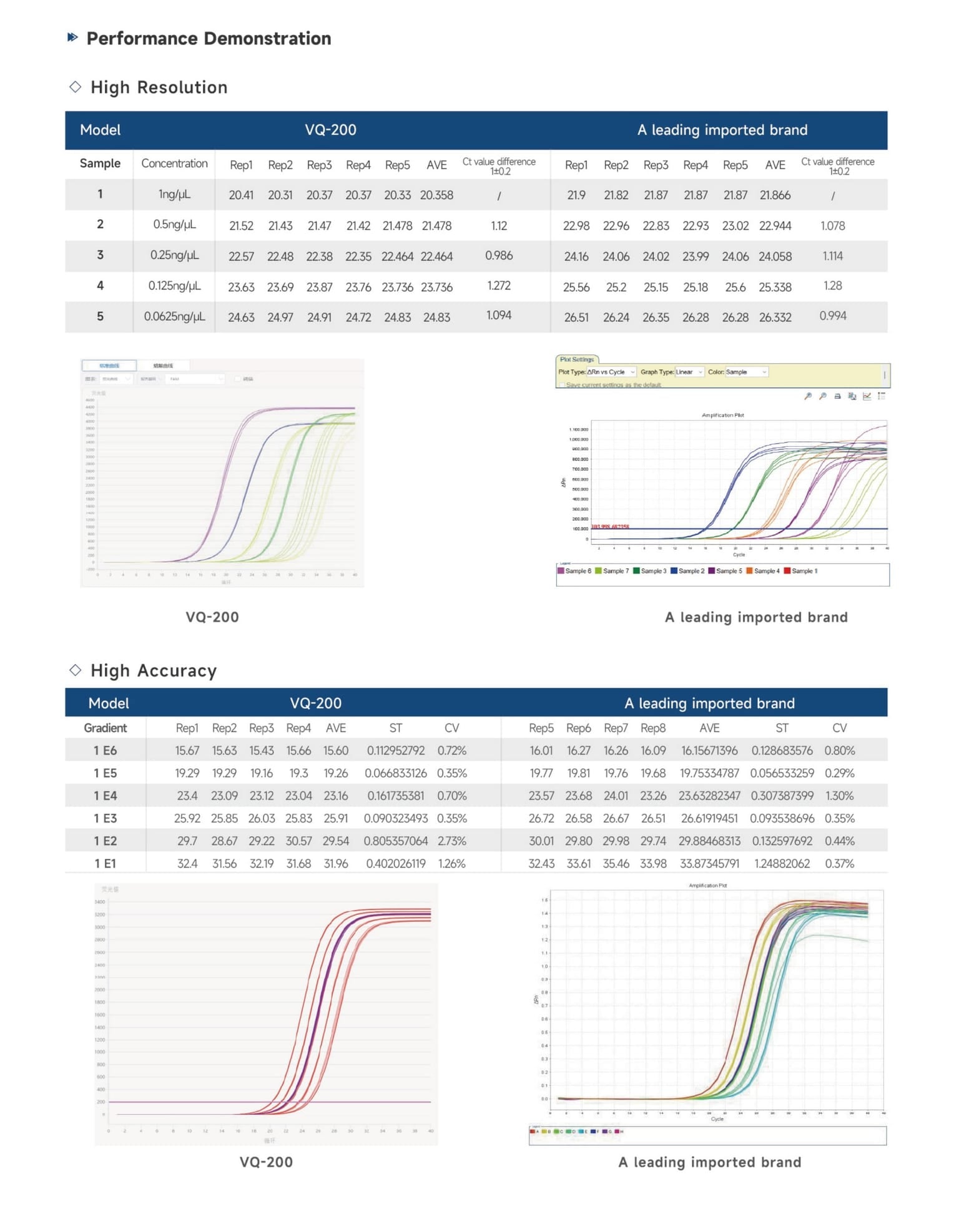

- High resolution performance demonstrated across concentration gradients
- High accuracy performance demonstrated across multiple gradient replicates

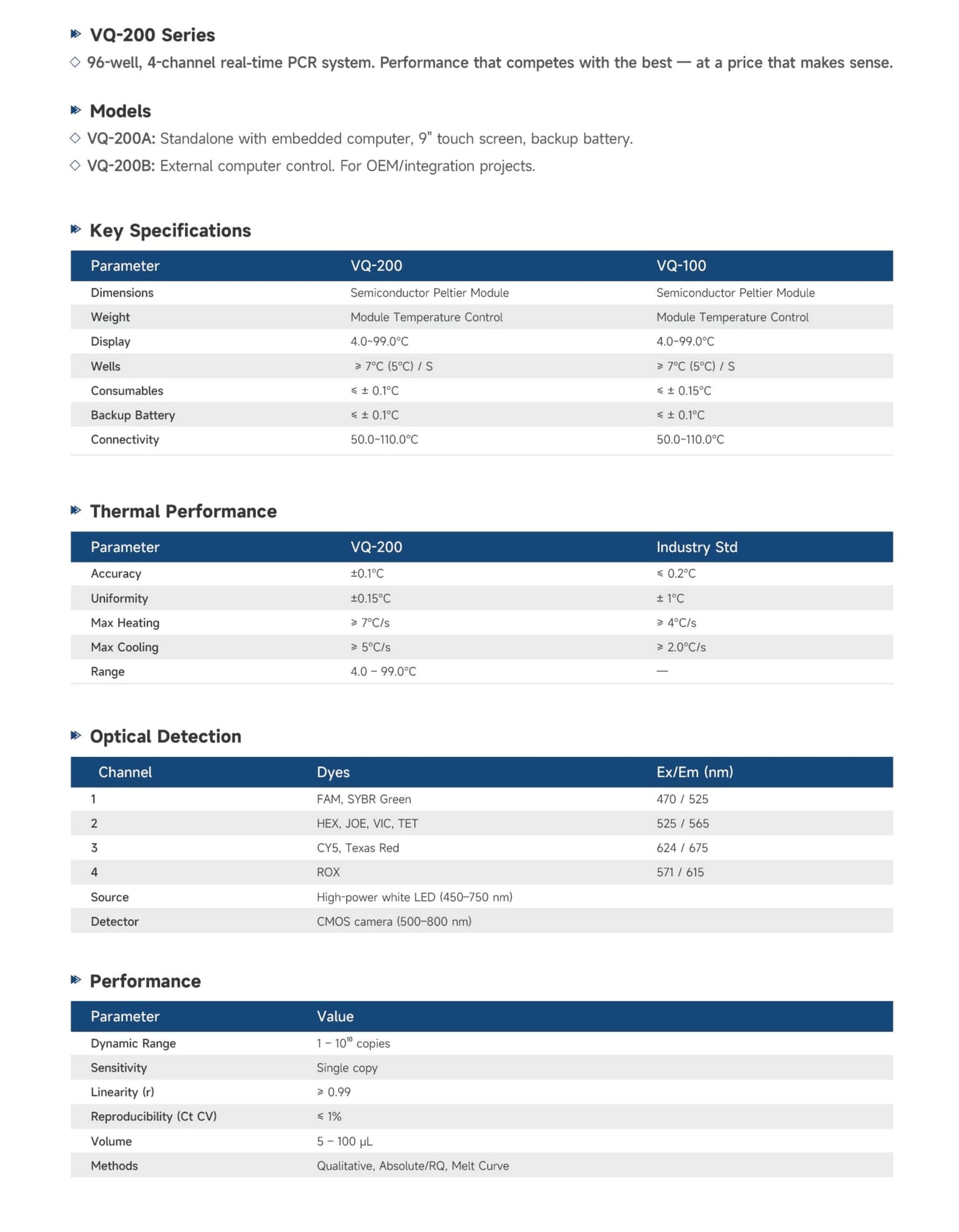

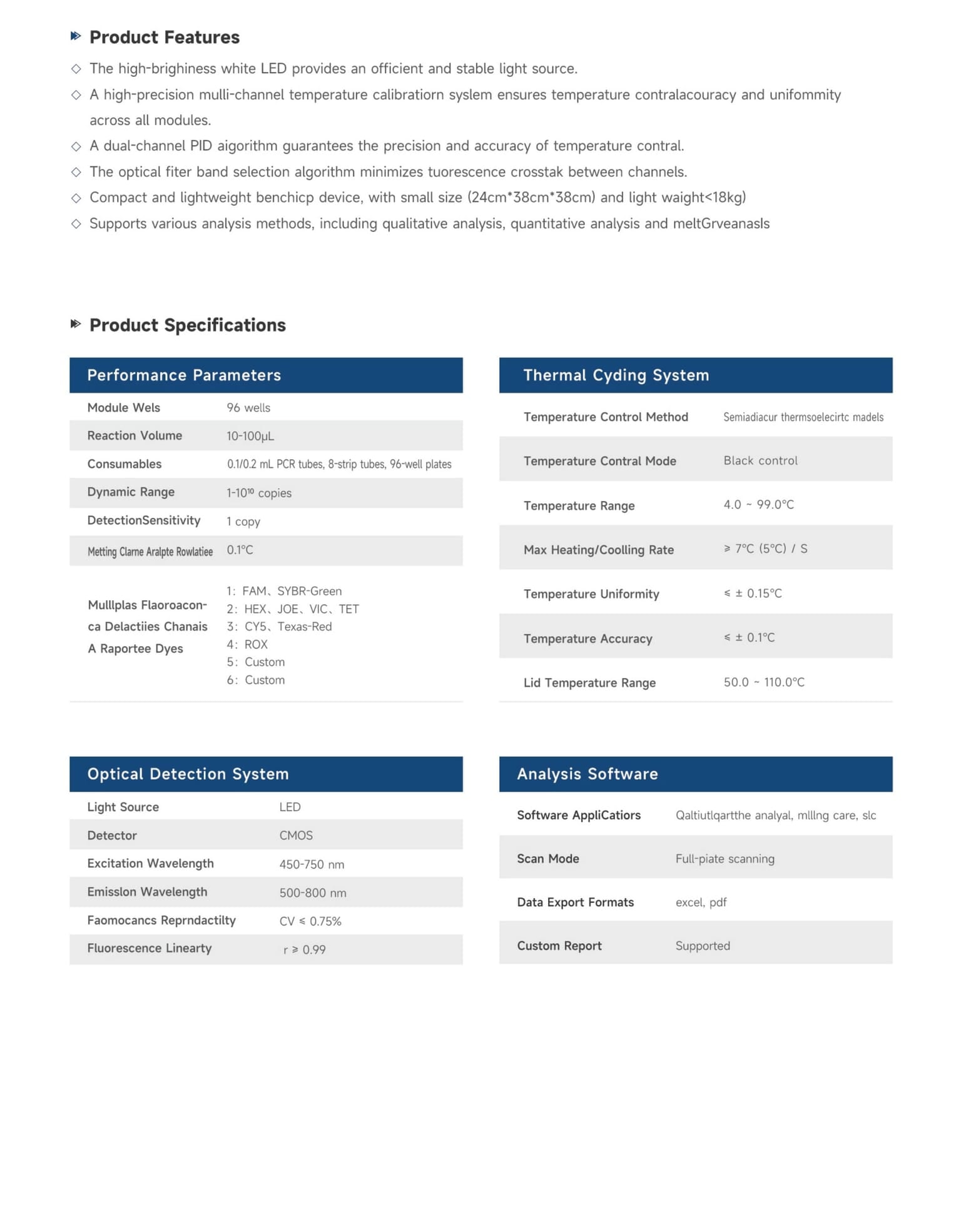

- Performance Parameters: Module Format 96-Well; Reaction Volume 10–100 μL; Compatible Consumables include 0.1/0.2mL PCR tubes, single tubes, 8-tube strips, and 96-well plates; Dynamic Range 1–10¹⁰ copies; Detection Sensitivity 1 copy; Melting Curve Temperature Resolution 0.2°C (VQ-200) / 0.1°C (VQ-100)
- Multiplex Fluorescence Channels: Channel 1: FAM, SYBR-Green; Channel 2: HEX, JOE, VIC, TET; Channel 3: CY5, Texas-Red; Channel 4: ROX; Channel 5: Customizable; Channel 6: Customizable
- Thermal Cycling System: Semiconductor Peltier Module temperature control; Temperature Range 4.0–99.0°C; Max Ramp Rate ≥ 7°C (5°C)/S; Temperature Uniformity ≤ ± 0.1°C (VQ-200) / ≤ ± 0.15°C (VQ-100); Temperature Accuracy ≤ ± 0.1°C; Heated Lid Temperature Range 50.0–110.0°C
- Optical Detection System: High-power broadband LED light source; CMOS camera detector; Excitation Wavelength 450–750 nm; Emission Wavelength 500–800 nm; Fluorescence Repeatability CV ≤ 0.75%; Fluorescence Linearity Linear regression coefficient r ≥ 0.99
More Details

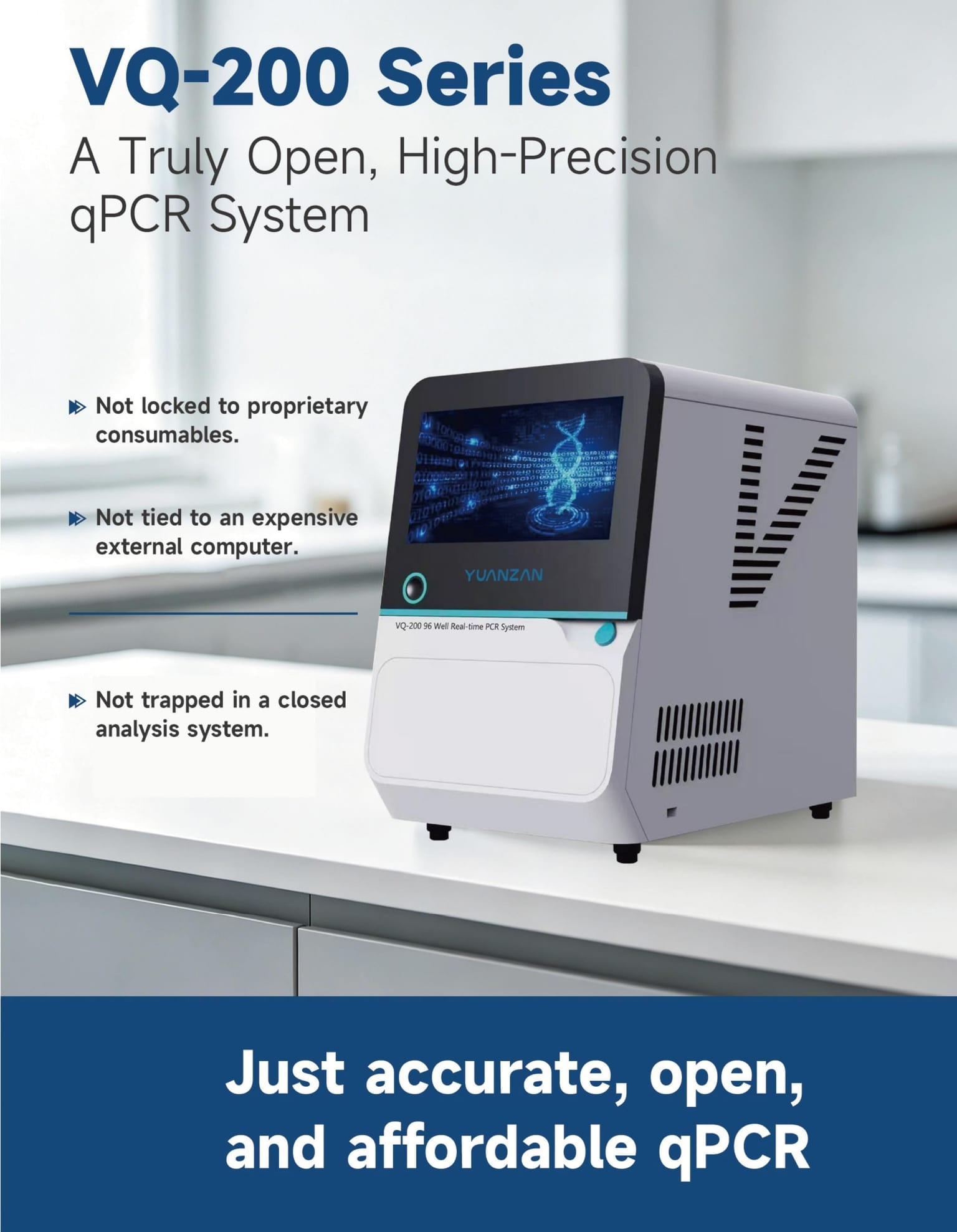

Real-time Fluorescence Quantitative PCR Analyzer VQ-200
Product introduction

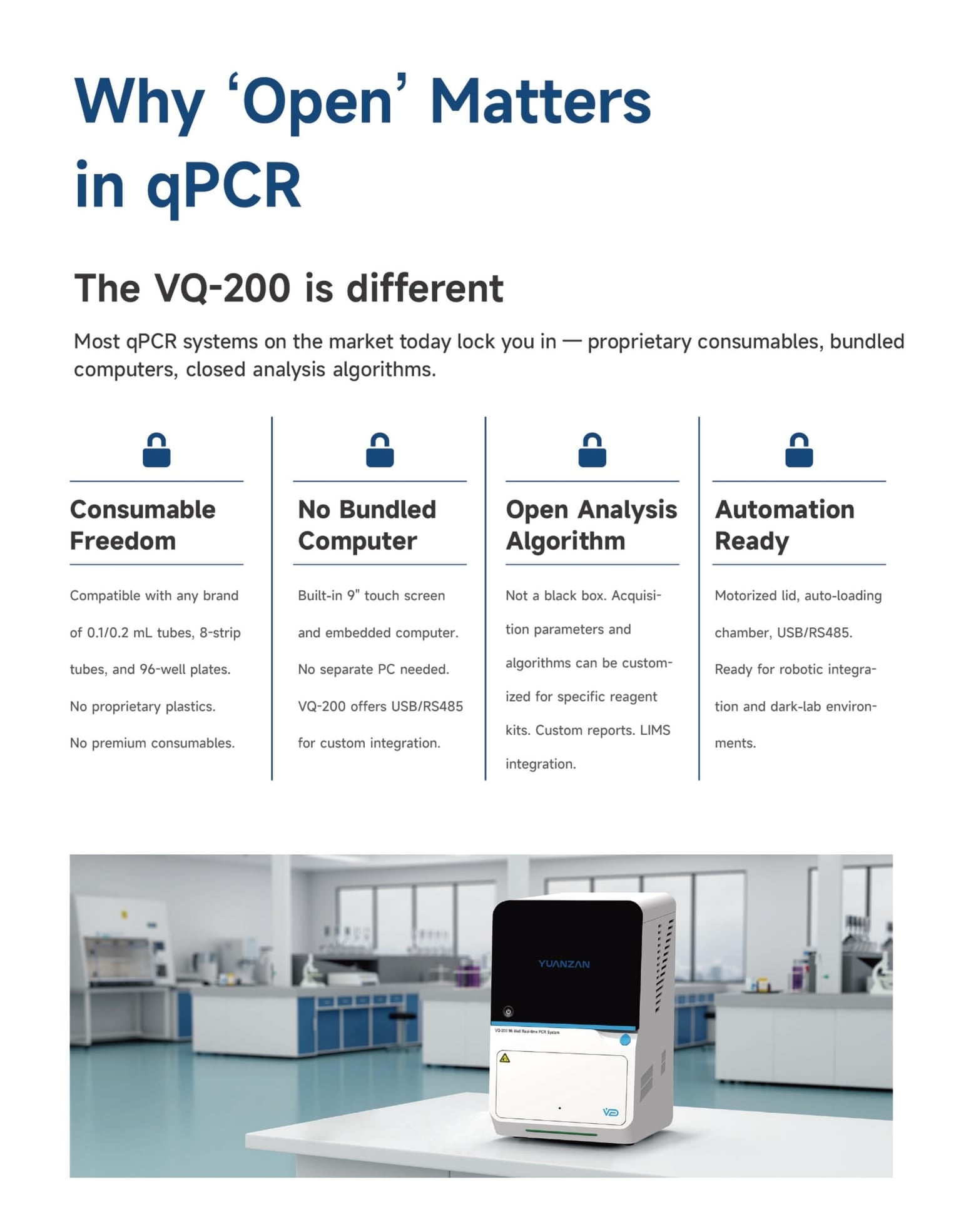

The Real-Time Fluorescent Quantitative qPCR System includes models VQ-200 and VQ-100, designed for qualitative and quantitative PCR analysis including melt curve applications. The system consists of an industrial computer module, temperature control module, optical detection module, power module, and software (analysis software version: V2.0, embedded software version: V1.0). The external workstation includes a computer host, monitor, and supporting keyboard and mouse. Standard accessories include a USB3.0 data cable (2000mm), power cord (1500mm), with a host size of 387×243×385mm and weight of 20kg.
Real-time Fluorescence Quantitative PCR Analyzer VQ-200
Product introduction
The Real-Time Fluorescent Quantitative qPCR System includes models VQ-200 and VQ-100, designed for qualitative and quantitative PCR analysis including melt curve applications. The system consists of an industrial computer module, temperature control module, optical detection module, power module, and software (analysis software version: V2.0, embedded software version: V1.0). The external workstation includes a computer host, monitor, and supporting keyboard and mouse. Standard accessories include a USB3.0 data cable (2000mm), power cord (1500mm), with a host size of 387×243×385mm and weight of 20kg.
Product Feature
- Full touchscreen UI operation mode (VQ-200)
- Supports Qualitative/Quantitative analysis applications and Melt Curve, etc.
- Full plate scanning mode
- Data export formats: Excel, PDF
- Custom report generation supported
- Excellent repeatability with AVE 23.37, ST 0.18, CV 0.01 (VQ-200)
- High resolution performance demonstrated across concentration gradients
- High accuracy performance demonstrated across multiple gradient replicates
- Performance Parameters: Module Format 96-Well; Reaction Volume 10–100 μL; Compatible Consumables include 0.1/0.2mL PCR tubes, single tubes, 8-tube strips, and 96-well plates; Dynamic Range 1–10¹⁰ copies; Detection Sensitivity 1 copy; Melting Curve Temperature Resolution 0.2°C (VQ-200) / 0.1°C (VQ-100)
- Multiplex Fluorescence Channels: Channel 1: FAM, SYBR-Green; Channel 2: HEX, JOE, VIC, TET; Channel 3: CY5, Texas-Red; Channel 4: ROX; Channel 5: Customizable; Channel 6: Customizable
- Thermal Cycling System: Semiconductor Peltier Module temperature control; Temperature Range 4.0–99.0°C; Max Ramp Rate ≥ 7°C (5°C)/S; Temperature Uniformity ≤ ± 0.1°C (VQ-200) / ≤ ± 0.15°C (VQ-100); Temperature Accuracy ≤ ± 0.1°C; Heated Lid Temperature Range 50.0–110.0°C
- Optical Detection System: High-power broadband LED light source; CMOS camera detector; Excitation Wavelength 450–750 nm; Emission Wavelength 500–800 nm; Fluorescence Repeatability CV ≤ 0.75%; Fluorescence Linearity Linear regression coefficient r ≥ 0.99
More Details
